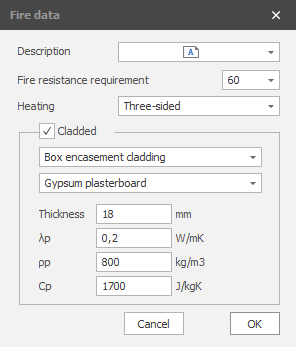

Fire Data

Description

Description of the fire data

Fire Resistance Requirement

Fire resistance requirement in minutes (30, 60, 90, or 120 minutes)

Heating

How the bar is heated. The bar can be heated on four sides or three sides. This affects the profile factor.

Cladding

Setting indicating whether the profile is unclad or clad.

Type of cladding

The fire-resistant cladding can be tubular or form-fitting. This also affects the profile factor.

Material

For both tubular and form-fitting cladding, a number of materials are listed, each with different layer thicknesses, thermal conductivity, density, and specific heat.

λp

Thermal conductivity of insulation [W/(m·K)].

ρp

Density of insulation [kg/m³].

Cp

Specific heat of insulation [J/(kg·K)]
